 | Zinc selenide is a material of choice for IR optics, substrates, scintillators and electro-optical modulators. |
| | |
| Structure: | Cubic (zincblende) |
| Density | 5.264 g/ cm3 |
| Hardness | 105 kg/ mm2 |
| Flexural Strength (4pt bending) | 7500 psi |
| Young’s Modulus | 10.2 Mpsi |
| Poisson Ratio | 0.28 |
| Coefficient of thermal expansion | 7.1×10−6/K |
| Specific Heat | 0.339 J/gK |
| Thermal conductivity | 0.16 W/cmK |
| Eg at 295 K | 2.67 eV |
| Dielectric Constant | 8.976 |
| Max. Transmittance (λ=2.5-15 μm) | ≥70.5 % |
| Absorption Coefficient (λ=10.6 μm) | (1-2)×10-3 cm-1 (including 2 surfaces) |
| Damage threshold (λ=10.6 μm) | ≥100 kWt/cm2 |
| Thermo-Optic Coef. (dn/dT) | 6.1 ( λ=10.6 μm) |
| Refractive index (λ=10.6 μm) | 2.4 |
| Electrooptical coefficient r41 (λ=10.6 μm) | 2.2×10-12 m/V |
| γ-radiation tolerance dose | > 106 J/kg |
|

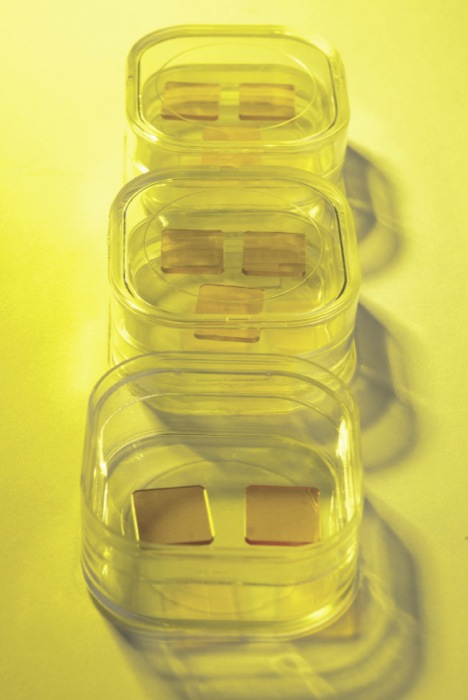

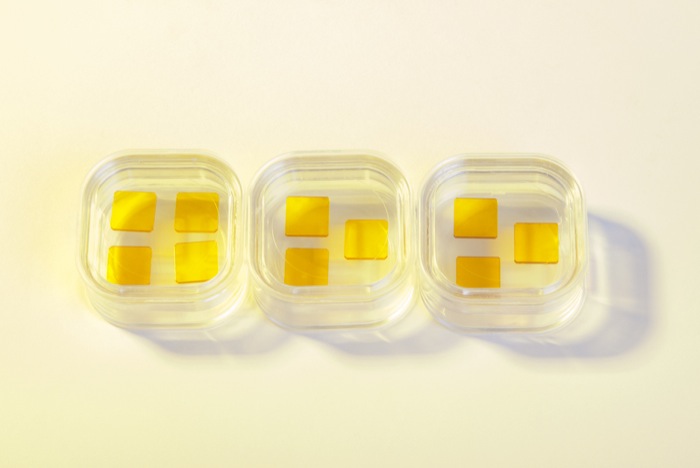

ZnSe rods, wafers, windows and lenses |
| | |
| Diameter/Width | 1-50 mm |
| Thickness/length | 0.1-150 mm |
| Orientation | (110), (111) |
| Surface quality | As-grown, as-cut, 80/50, 60/40, 40/20 per MIL-0-13830 |
|
ZnSe crystal pieces for vapour deposition |
| | |
| Purity | 99.99%, 99.999% |
| Particle size | 0.01- 10 mm |
|
|
|
